3242 - QF SD Automatic Blast Gate

  • Operated by compressed air cylinders, controlled by electrically connected solenoid.
  • 120V Control Circuit and 75psi minimum air pressure.
  • Optional 24V DC or AC control circuits available.

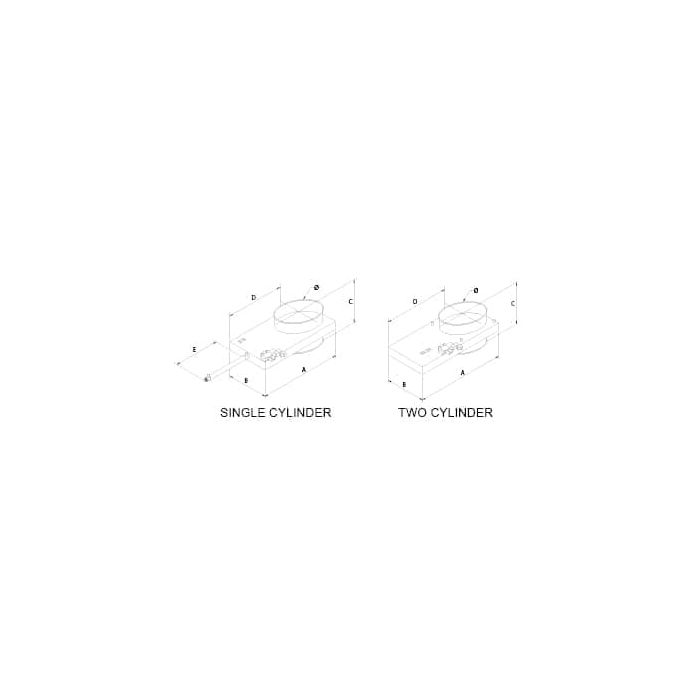

  • Single cylinder: 3" to 10".
  • Double cylinder 12" to 24".
  • Not available in SS.
In stock
SKU
3242
Part Number Diameter DescriptionPriceQtyTotal
3242-0300-100000 3 in. 3" Automatic SD Blast Gate - Galvanized - A=4.25"B=5.25" C=6.3" D=8.5"$854.30
3242-0400-100000 4 in. 4" Automatic SD Blast Gate - Galvanized - A=5.3"B=5.5" C=7.81" D=8.5"$854.30
3242-0500-100000 5 in. 5" Automatic SD Blast Gate - Galvanized - A=6"B=5.75" C=9.88" D=9.5"$871.35
3242-0600-100000 6 in. 6" Automatic SD Blast Gate - Galvanized - A=7.12"B=5.75" C=11.28" D=11.5"$871.35
3242-0700-100000 7 in. 7" Automatic SD Blast Gate - Galvanized - A=8"B=5.38" C=12.44" D=11.5"$939.70
3242-0800-100000 8 in. 8" Automatic SD Blast Gate - Galvanized - A=9.3"B=5.5" C=14.38" D=13.5"$1,025.10
3242-0900-100000 9 in. 9" Automatic SD Blast Gate - Galvanized - A=10.63"B=5.5" C=15.88" D=13.5"$1,067.95
3242-1000-100000 10 in. 10" Automatic SD Blast Gate - Galvanized - A=11.65"B=5.5" C=17.25" D=13.5"$1,067.95
3242-1200-100000 12 in. 12" Automatic SD Blast Gate - Galvanized - A=16"B=5.25" C=23.25" D=N/A"$1,110.65
3242-1400-100000 14 in. 14" Automatic SD Blast Gate - Galvanized - A=18.38"B=5.25" C=25.29" D=N/A"$1,238.75
3242-1600-100000 16 in. 16" Automatic SD Blast Gate - Galvanized - A=20.38"B=11.25" C=29.65" D=N/A"$1,383.90
3242-1800-100000 18 in. 18" Automatic SD Blast Gate - Galvanized - A=22.38"B=11.25" C=37.04" D=N/A"$1,537.81
3242-2000-100000 20 in. 20" Automatic SD Blast Gate - Galvanized - A=24.38"B=11.25" C=38.04" D=N/A"$1,657.30
3242-2200-100000 22 in. 22" Automatic SD Blast Gate - Galvanized - A=26.38"B=11.25" C=39.04" D=N/A"$1,811.05
3242-2400-100000 24 in. 24" Automatic SD Blast Gate - Galvanized - A=31.28"B=11.25" C=42.4" D=N/A"$2,016.10
